Wii Nunchuk - Lighting the Analog Stick

Supplies-
  • Soldering Iron
  • Soldering Sponge
  • Solder (Rosin Core/.022dia)
  • Wire (30awg.. not used in Method 2)
  • 3mm LED color of your choice*
  • Resistor*
  • Tri-wing Screwdriver
*In this tutorial I used a 3mm Blue LED (3.3v/30ma). I have yet to test an LED that requires 2.1v (such as Red). Assuming that the nunchuk outputs 3.3v, you'll need to use an 82ohm 1/4w resistor to properly power a 2.1v LED.

Where to get LEDs-
www.sickmods.net
www.ledshoppe.com
www.ebay.com

Where to get a Tri-wing Screwdriver-
www.sickmods.net
www.Ebay.com

My tri-wing screwdriver looks like this-


Method 1- Using wire

Step 1-
Disassembling the nunchuk:
Use this tutorial- Link

Step 2-
Finding the solder points:
The mod will revolve around these 2 points. Notice that Red = Positive and Black = Negative.


Step 3-
Bending your LED:
Bend your LED like so-



Step 4-
Transplanting legs with wires:
You may want to mark one of the legs or use different colored wire.
Cut off one leg and solder a wire to it like this-


Then do that with the other leg.
Once you've done that.. measure out around 1-1.5in of wire and give it a snip. But prepare to trim if needed!

Step 5-
Positioning and soldering:
Position the LED like so and solder the wires to their appropriate spots.



Step 6-
Testing:
Plug your nunchuk into your wiimote. Press a button..and if you've installed the LED correctly, it should light up!






Step 7-
Reassembling:
Make sure your C and Z buttons are in place.
Make sure you put the analog stick back on correctly.
Place the top of the nunchuk back on.
Screw back together.

Step 8-

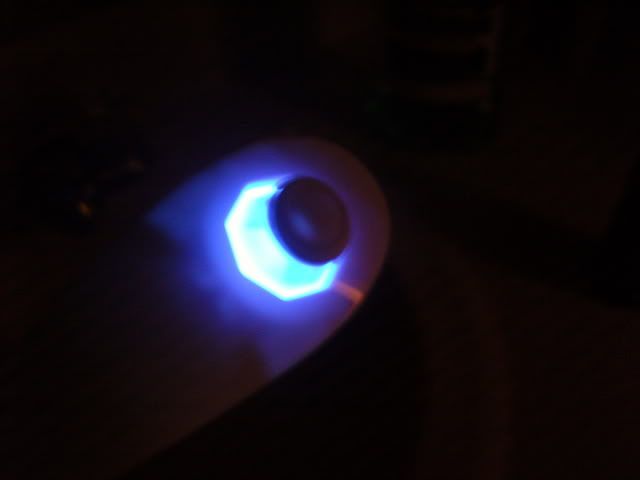

Testing once more:




Method 2- Origami with your LED

Step 1-
Disassembling the nunchuk:
Use this tutorial- Link

Step 2-
Finding the solder points:
-Notice that Red = Positive and Black = Negative.


Step 3-
Testing your origami skills:
Here comes the difficult part. You're gonna need to grab your LED and start bending it. Make sure you have the positive leg going towards the positive point and the negative leg going towards the negative leg.

You can either wrap up the legs of your LED with electrical tape/heat shrink or lay some electrical tape onto the PCB.

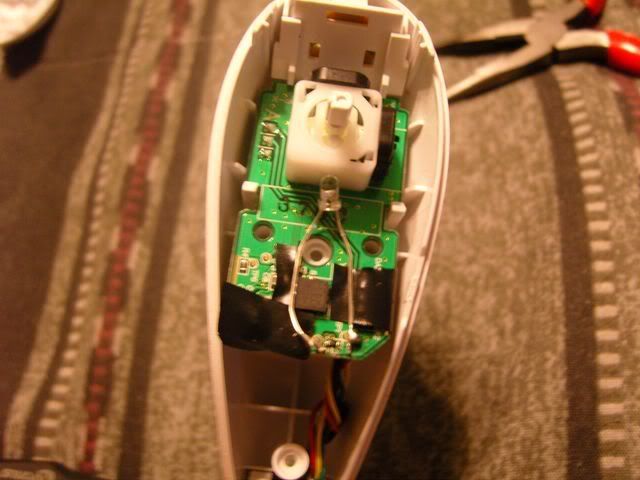

In this picture (my first attempt at this mod), I decided to just place electrical tape on the PCB


Step 4-
Testing:
Plug your nunchuk into your wiimote.. press a button.. and if you did it all correctly.. it should light up!

Step 5-
Reassembling:
Make sure your C and Z buttons are in place.
Make sure you put the analog stick back on correctly.
Place the top of the nunchuk back on.
Screw back together.

Step 6-

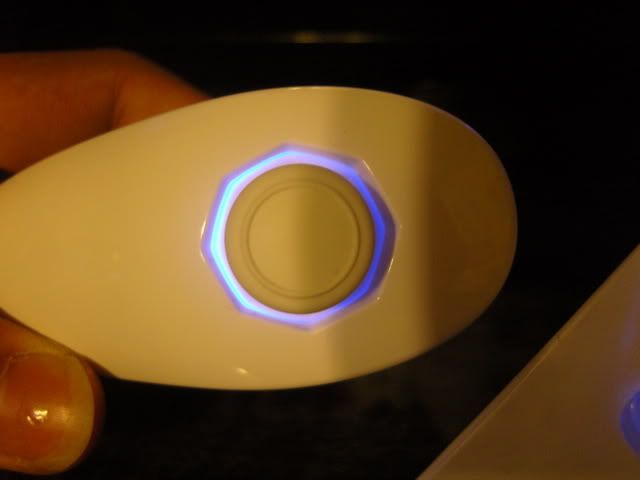

Testing once more.

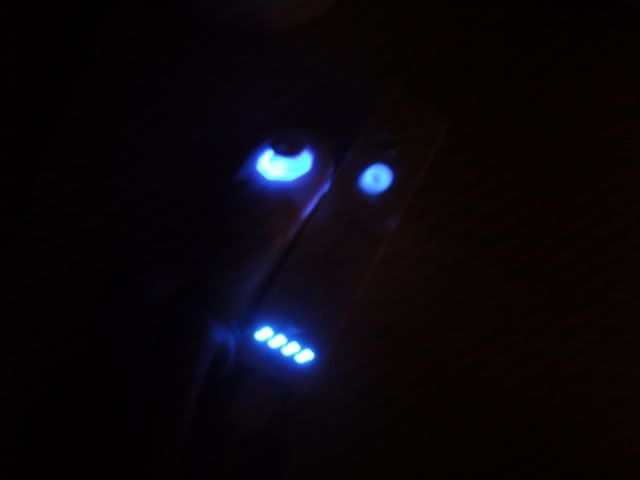

Wiimote and Nunchuk Together-
